Right Hand Screw Rule
Right Hand Slap Rule
Magnetic Flux
Lenz's Law
Faraday;'s Law & Lenz's Law
Sunday, 9 September 2018
Term 3 Week 7 2018
Homework
Ex 6A, p.251-254 Level 2 D.C. Circuit Revision
Ex 6B, p.261-261 Internal Resistance of a Battery
Ex 6C, p.267-272 Kirchhoff's Laws
Ex 6D, p.277-280 Capacitors Ep = ½ QV
Ex 6E, p.283-284 Capacitors C = 𝜺r𝜺oA/d
Ex 6F, p.289-292 Capacitor Networks (Series & Parallel)
Ex 6G, p.298-300 Capacitor Charge & Discharge
Ex 6H, p.303-305 Faraday's Law, 𝜺 = - Δ𝛟/Δt
Term 3 Week 6 2018
Homework
Ex 6A, p.251-254 Level 2 D.C. Circuit Revision
Ex 6B, p.261-261 Internal Resistance of a Battery
Ex 6C, p.267-272 Kirchhoff's Laws
Ex 6D, p.277-280 Capacitors Ep = ½ QV
Ex 6E, p.283-284 Capacitors C = 𝜺r𝜺oA/d
Ex 6F, p.289-292 Capacitor Networks (Series & Parallel)
Ex 6G, p.298-300 Capacitor Charge & Discharge
Capacitor Circuits
Capacitors in Series
Calculating Voltage Charge and Total Capacitance
Capacitors in Parallel
Calculating Voltage Charge and Total Capacitance
Capacitors in Parallel vs Capacitors in Series
Capacitors in Combination
Series & Parallel Capacitors
Capacitors in Combination
Patrallel & Series Capacitors
Capacitors in Series
Calculating Voltage Drop
Capacitors in Series
Calculating the Charge Stored
Capacitors in Series
Calculating the Equivalent Capacitance
Capacitors in Parallel
Calculating Voltage Drop
Capacitors in Parallel
Calculating the Charge Stored
Capacitors in Parallel
Calculating the Equivalent Capacitance
Capacitor Charge & Discharge
RC Circuits 1: Charging and Discharging a Capacitor
Tuesday, 28 August 2018
Term 3 Week 5 2018
Homework
Ex 6A, p.251-254 Level 2 D.C. Circuit Revision
Ex 6B, p.261-261 Internal Resistance of a Battery
Ex 6C, p.267-272 Kirchhoff's Laws
Ex 6D, p.277-280 Capacitors Ep = ½ QV
Ex 6E, p.283-284 Capacitors C = 𝜺r𝜺oA/d
Capacitor
C = Q/V
Capacitors
Basic Definition
Physical Parameters
Energy Stored
Ep = ½ QV
Capacitors & Capacitance
Dielectric
An insulating material placed in between the capacitor plates to increase the Capacitance
C = 𝜺r𝜺oA/d
Dielectrics in Capacitors
Monday, 27 August 2018
Term 3 Week 4 2018
Homework
Ex 6A, p.251-254 Level 2 D.C. Circuit Revision
Ex 6B, p.261-261 Internal Resistance of a Battery
Ex 6C, p.267-272 Kirchhoff's Laws
Electrical Charge
Current
Current is the rate of flow of Charge
I = Δq/Δt
Current
Voltage
Voltage (Potential Difference) is the change in energy (work done) to each coulomb of charge between two points on a circuit, or two points across an electric field
Voltage
Voltage (Potential Difference) is the change in energy (work done) to each coulomb of charge between two points on a circuit, or two points across an electric field
V = ΔE/Q
Ohm's Law & Resistance
Power
Circuit Symbols
Ohm's Law
Ohm's Law
Internal Resistance of a Battery
Batteries can be thought of as having an ideal voltage supply E.M.F. (Electromotive Force) in series with an internal resistance
V = 𝛆 - Ir
How to find the internal resistance of a
battery
Kichhoff's Laws
Kirchhoff’s Current Law
“At any junction in a circuit, the total current entering the junction equals the total current leaving the junction”
Kirchhoff’s Voltage Law
“Around any closed path of a circuit, the total of all the potential differences, V, is zero”
“At any junction in a circuit, the total current entering the junction equals the total current leaving the junction”
Kirchhoff’s Voltage Law
“Around any closed path of a circuit, the total of all the potential differences, V, is zero”
Kirchhoff's Rules for Circuit Analysis - Explanation
Kirchhoff's Rules for Circuit Analysis - Example 1
Kirchhoff's Rules for Circuit Analysis - Example 2
Kirchhoff's Rules for Circuit Analysis - Example 3
Sunday, 5 August 2018
Term 3 Week 3 2018
Homework
Ex 3D, p.75-79, Standing Waves and Music
Ex 3E, p.81-84, Beats
Ex 3F, p. 87-96 Doppler Effect
Ex 3B, p. 57-62, Two Point Source Interference (Double Slit Experiment)
Beats
two waves of a similar frequency (similar wavelength) superimpose to come in and out of phase causing constructive and deconstructive interference respectively. This causes a warbling/beat sound of frequency (fb) equal to the difference in respective frequencies
fb = | f1 - f2 |
Wave Beats
Easy Beats- Physics
Doppler Effect
The Doppler Effect: what does motion do to waves?
Doppler Effect
Intro to the Doppler Effect
Doppler Effect Observed Frequency Equation
Sonic Boom

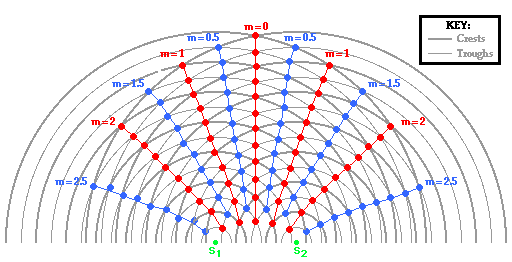

Two Point Source Interference
- Antinodes - Path Difference = n𝜆
- Nodes - Path Difference = (n + 1/2)𝜆
Two Point Source Interference
n𝜆 = dsin(𝛳)
n: Antinodal Fringe Number
𝜆: Wavelength (m)
d: Slit-Spacing (m)
𝛳: Angle between Fringe on screen from the central position line
Iff 𝛳 is very small, then
n𝜆 = dx/L
x: Distance from Fringe on screen to central position (m)
L: Distance from slits to screen along the central position line (m)
Wave-Particle Duality Applied to the Double Slit Experiment
